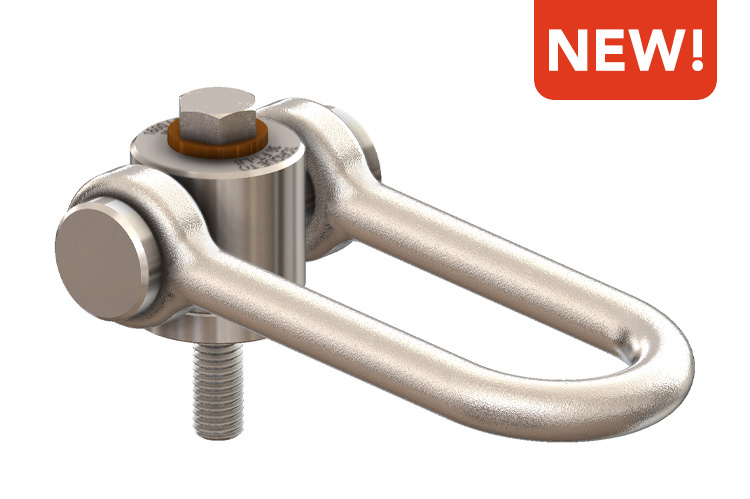

Swivel Hoist Ring – Long with Long Screw
Swivel Hoist Ring – Long with Long Screw
Grade: 316 Stainless Steel
Retail and bulk packaging available
The Swivel Hoist Ring- Long with Long Screw is made from 316 stainless steel for maximum corrosion resistance. These stainless swivel hoist rings set a new standard for innovation and reliability in the industry.
Specifications
THREADS ARE “UNC”. DESIGNED FOR 5:1 SAFETY FACTOR. MEETS ASME.B30.26. REPLACEMENT PARTS AVAILABLE.
ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.
| ITEM | A (UNC thread) | B | C | D | E | F | X | Y | Z | WLL (lb) | WT (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S0325-1333L | 1/2-13 | 1.29″ | 1.07″ | 0.63″ | 4.00″ | 1.81″ | 3.65″ | 6.90″ | 1.75″ | 1,600 | 3.10 |
| S0325-1638L | 5/8-11 | 1.47″ | 1.26″ | 0.75″ | 4.25″ | 2.06″ | 4.20″ | 7.68″ | 2.00″ | 2,200 | 4.70 |
| S0325-2045L | 3/4-10 | 1.80″ | 1.52″ | 0.88″ | 4.56″ | 2.44″ | 4.91″ | 8.61″ | 2.38″ | 3,200 | 7.60 |
| S0325-2250L | 7/8-9 | 1.96″ | 1.73″ | 1.00″ | 4.54″ | 2.81″ | 5.64″ | 9.13″ | 2.75″ | 4,400 | 10.90 |
