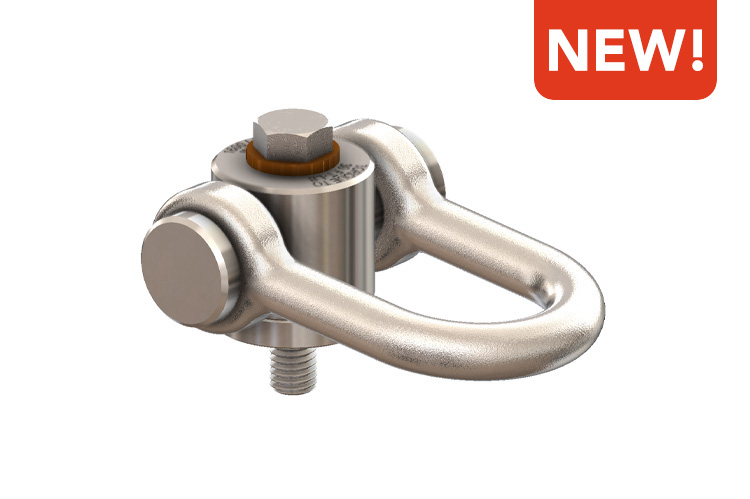

Swivel Hoist Ring – Standard with Short Screw
Swivel Hoist Ring – Standard with Short Screw
Grade: 316 Stainless Steel
Retail and bulk packaging available

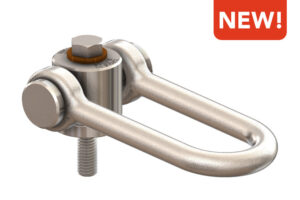

The Swivel Hoist Ring- Long with Long Screw is made from 316 stainless steel for maximum corrosion resistance. These stainless swivel hoist rings set a new standard for innovation and reliability in the industry.
Specifications
THREADS ARE “UNC”. DESIGNED FOR 5:1 SAFETY FACTOR. MEETS ASME.B30.26. REPLACEMENT PARTS AVAILABLE.
ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.
| ITEM | A (UNC thread) | B | C | D | E | F | X | Y | Z | WLL (lb) | WT (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S0325-0813S | 5/16-18 | 0.52″ | 0.68″ | 0.38″ | 1.29″ | 1.04″ | 2.17″ | 3.10″ | 1.00″ | 600 | 0.59 |
| S0325-1015S | 3/8-16 | 0.58″ | 0.77″ | 0.44″ | 1.29″ | 1.30″ | 2.62″ | 3.39″ | 1.25″ | 800 | 0.91 |
| S0325-1320S | 1/2-13 | 0.79″ | 1.07″ | 0.63″ | 2.02″ | 1.81″ | 3.65″ | 4.92″ | 1.75″ | 1,600 | 2.70 |
| S0325-1625S | 5/8-11 | 0.97″ | 1.26″ | 0.75″ | 2.26″ | 2.06″ | 4.20″ | 5.69″ | 2.00″ | 2,200 | 4.20 |
| S0325-2032S | 3/4-10 | 1.30″ | 1.52″ | 0.88″ | 2.54″ | 2.44″ | 4.91″ | 6.59″ | 2.38″ | 3,200 | 6.90 |
| S0325-2237S | 7/8-9 | 1.46″ | 1.73″ | 1.00″ | 3.04″ | 2.81″ | 5.64″ | 7.63″ | 2.75″ | 4,400 | 10.30 |
