360 Degree Anchor Swivel

Grade: 17-4 PH Stainless Steel

Retail and bulk packaging available

Suncor’s stainless steel 360 Degree Anchor Swivel is precision cast and made from grade 17-4 PH stainless steel for maximum corrosion resistance and durability.  It swivels 360 degrees and is equipped with a solid bronze thrust washer and a stainless steel screw pin. Multiple sizes are available to fit 1/4″ to 1/2″ chain.

Note: Heavy duty anchor rode swivel. Sleek design with solid screw pins. Thread locking liquid included for cross pins.

Precision Cast
Imported
Suncor Exclusive
Suncor Patent
Stainless Steel 360 Degree Anchor Swivel Shackle, S0190-0

Specifications

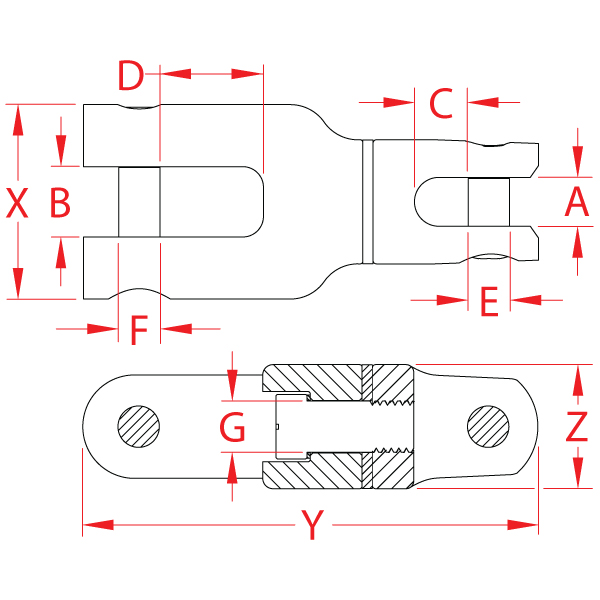

Stainless Steel 360 Degree Anchor Swivel Shackle, S0190-0, Line Drawing

ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.

ITEMABCDEFGXYZBL
(lb)
WT
(lb)
S0190-00080.38″0.65″0.50″0.81″0.31″0.38″0.44″1.90″3.81″1.13″8,5000.96
S0190-00130.59″0.85″0.67″1.25″0.50″0.50″0.62″2.35″5.50″1.50″15,0002.22
